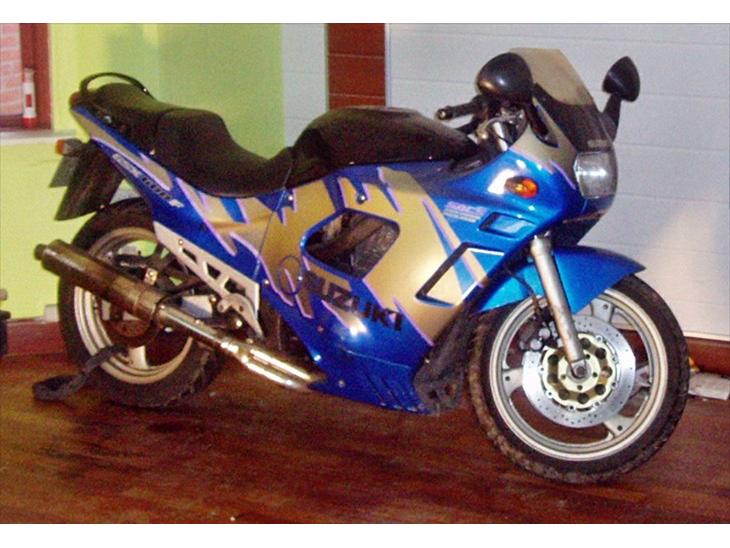

Suzuki GSX600FS [Tidl. motorcykel] 1995
1.291 visninger
|
Oprettet:
Suzuki GSX600FS
Årgang:
1995
Motor:
Suzuki SACS 600 ccm. kørt 32000 km. 4-cylindret, 4-takts luft/olie kølet rækkemotor. 2 overliggend knastaksler. 4 ventiler pr. cylinder..
Kubik: 599 cm3
Karburator: 4 stk, Mikuni Ø 33 mm
Kubik: 599 cm3
Karburator: 4 stk, Mikuni Ø 33 mm
Hestekræfter
86 hk
Fælge
17 tommer allu fælge
Dæk
pirelli også 17 tommer
Topfart
225
Tuning
nixen
Styling
nej alt er som fra fabrikken
Ekstraudstyr
heller ikke
Bemærkninger
GSX600F service iInformation
Engine
Spark Plugs Standard (1988—1995) NGK DR8ES
Hot type (1988—1995) NGK DR8ES-L
Standard (1996 on) NGK CR9EK
Hot type (1996 on) NGK CR8EK
Gap 0,6 — 0,7 mm (0.024 — 0.028 inch)
Engine idle speed 1988 and 1989 UK 1100 +/-100 rpm
all others 1300 +/-100 rpm
Valve clearance (cold engine)
Screw-type valve adjusters 0,10 — 0,15 mm (0.004 — 0.006 inch)
Shim-type valve adjusters
Intake 0,10 — 0,20 mm (0.004 — 0.008 inch)
Exhaust 0,15— 0,25 mm (0.006 — 0.010 inch)
Cylinder Compression Pressure
Standard
9,78 — 14,67 bars (142 — 213 psi)
Minimum 7,85 bars (114 psi)
Maximum variation 1,93 bars (28 psi)
Cylinder numbering (left to right) 1-2-3-4
Recommended lubricants and fluids
Engine/transmission oil
Type API grade SE or SF (minimum)
Viscosity SAE 10W-40
Capacity With filter change
3,8 liters (4.0 US qt, 6.7 Imp pt)
Oil change only
3,6 liters (3.8 US qt, 6.3 Imp pt)
Engine overhaul
5,0 liters (5.3 US qt, 8.8 Imp pt)
Brake fluid DOT 4
Fork oil Type SAE 10 - fork oil
Amount 1988
460 cc (15.5 US fl oz, 16.2 Imp fl oz)
Amount 1989 on
478 cc (16.1 US fl oz, 16.8 Imp fl oz)
Oil level 1988
134 mm (5.28 inches)
Oil level 1989 on 100 mm (3.93 inches)
Drive chain 20W-50 engine oil (not chain lube)
Cables and lever pivots Chain/cable lubricant or 10W-30 motor oil
Sidestand/centerstand pivots Medium-weight lithium-based multigrease
Brake pedal/shift lever pivots Chain/cable lubricant or 10W-30 motor oil
Throttle grip Multi-purpose grease or dry film lubricant
Miscellaneous
Brake pad minimum thickness To limit line
Brake pedal height 45 mm (1.8 inch) below top of footpeg
Freeplay adjustments
Throttle cable
0,5—1.0 mm (0.020—0.040 inch)
Clutch cable
1988—1993 models 4 mm (0.16 inch)
1994 on 10 to 15 mm (0.4 to 0.6 inch)
Drive chain
Slack
Standard 20—25 mm (0.8—1.0 inch)
Service limit 45 mm (1.77 inch)
21-pin length
319,4 mm (12.6 inch)
Battery electrolyte specific gravity 1,28 at 20°C (68°F)
Minimum tire tread depth (2)
Front
1,6 mm (0.060 inch)
Rear
2,0 mm (0.080 inch)
Tire pressure (cold)
Front
2.27 bars (33 psi)
Rear
2.48 bars (36 psi)
Torque specifications
Oil drain plug 20—25 Nm (18—25 ft-lbs)
Spark plugs
New plugs
1/2 turn after gasket touches engine
Used plugs
1/4 turn after gasket touches engine
Engine
Spark Plugs Standard (1988—1995) NGK DR8ES
Hot type (1988—1995) NGK DR8ES-L
Standard (1996 on) NGK CR9EK
Hot type (1996 on) NGK CR8EK
Gap 0,6 — 0,7 mm (0.024 — 0.028 inch)
Engine idle speed 1988 and 1989 UK 1100 +/-100 rpm
all others 1300 +/-100 rpm
Valve clearance (cold engine)
Screw-type valve adjusters 0,10 — 0,15 mm (0.004 — 0.006 inch)
Shim-type valve adjusters
Intake 0,10 — 0,20 mm (0.004 — 0.008 inch)
Exhaust 0,15— 0,25 mm (0.006 — 0.010 inch)
Cylinder Compression Pressure
Standard
9,78 — 14,67 bars (142 — 213 psi)
Minimum 7,85 bars (114 psi)
Maximum variation 1,93 bars (28 psi)
Cylinder numbering (left to right) 1-2-3-4
Recommended lubricants and fluids
Engine/transmission oil
Type API grade SE or SF (minimum)
Viscosity SAE 10W-40
Capacity With filter change
3,8 liters (4.0 US qt, 6.7 Imp pt)
Oil change only
3,6 liters (3.8 US qt, 6.3 Imp pt)
Engine overhaul
5,0 liters (5.3 US qt, 8.8 Imp pt)
Brake fluid DOT 4
Fork oil Type SAE 10 - fork oil
Amount 1988
460 cc (15.5 US fl oz, 16.2 Imp fl oz)
Amount 1989 on
478 cc (16.1 US fl oz, 16.8 Imp fl oz)
Oil level 1988
134 mm (5.28 inches)
Oil level 1989 on 100 mm (3.93 inches)
Drive chain 20W-50 engine oil (not chain lube)
Cables and lever pivots Chain/cable lubricant or 10W-30 motor oil
Sidestand/centerstand pivots Medium-weight lithium-based multigrease
Brake pedal/shift lever pivots Chain/cable lubricant or 10W-30 motor oil
Throttle grip Multi-purpose grease or dry film lubricant
Miscellaneous
Brake pad minimum thickness To limit line
Brake pedal height 45 mm (1.8 inch) below top of footpeg
Freeplay adjustments
Throttle cable
0,5—1.0 mm (0.020—0.040 inch)
Clutch cable
1988—1993 models 4 mm (0.16 inch)
1994 on 10 to 15 mm (0.4 to 0.6 inch)
Drive chain
Slack
Standard 20—25 mm (0.8—1.0 inch)
Service limit 45 mm (1.77 inch)
21-pin length
319,4 mm (12.6 inch)
Battery electrolyte specific gravity 1,28 at 20°C (68°F)
Minimum tire tread depth (2)
Front
1,6 mm (0.060 inch)
Rear
2,0 mm (0.080 inch)
Tire pressure (cold)
Front
2.27 bars (33 psi)
Rear
2.48 bars (36 psi)
Torque specifications
Oil drain plug 20—25 Nm (18—25 ft-lbs)
Spark plugs
New plugs
1/2 turn after gasket touches engine
Used plugs
1/4 turn after gasket touches engine
Suzuki GSX600FS
jun 2007
Følger: 32 Følgere: 28 MC-er: 5 Emner: 30 Svar: 474
den er hel sort tanken, men hele mc'en ryger en tur ud til maleren efter kåben er udskiftet
okt 2007
Følger: 61 Følgere: 48 MC-er: 8 Emner: 153 Svar: 679
fin gammel suzuki , fin farve , men skal tanken være sort ?
høj
jun 2007
Følger: 32 Følgere: 28 MC-er: 5 Emner: 30 Svar: 474
viser 32233 km men er sikkert spolet tilbage eller er blevet ufskiftet
mar 2007
Følger: 1 MC-er: 2 Emner: 46 Svar: 298
Chek lige km tæller ign ?
dec 2003
Følger: 2 Følgere: 275 MC-er: 5 Emner: 130 Svar: 4.953
Sådan en illerkål havde jeg fra ny i 92 i samme farve.
jul 2007
Følger: 3 Følgere: 2 Emner: 1 Svar: 3
Høj herrfra
